Welcome to our simple guide to measuring your windows for new plantation shutters.

Before you get started, you’ll need a steel tape measure, pen and paper. Please note that all measurements should be taken in millimetres (mm).

Prior to placing your order, please ensure that the measurements you provide are 100% correct. Your new shutters cannot be adjusted once they’ve been manufactured and delivered.

SHUTTER INFORMATION

1. Our shutters generally have a shutter panel attached (hinged) to a frame. The panel consists of louvres which swivel open and closed.
2. There are stiles which run vertically on the sides and rails which run horizontally along the top and bottom of the shutter.
3. Panels with a height greater than 1800mm will include a divider rail. This adds strength to the construction and added support to each shutter panel. It also allows you to open the top louvres while keeping the bottom ones closed.

See the diagram for a clearer understanding of the component parts.

How to measure: Recess Fit Shutters

Recess fit shutters, also known as inside-mounted shutters, are fitted neatly within the window frame. Providing you have sufficient depth available, there are three inside-mount frame options possible. If you don’t meet the minimum depth requirements (see below), you must use an outside mount frame.

If installation occurs in a window opening without a protruding sill, the inside-mounted Z-Frame will extend around 28mm onto the face of the wall (see Illustration 1). However, if the sill is protruding, the base of your shutter frame will end at the top of the sill (see Illustration 2).

The decorative trim face of the Z-Frame will cover most of the apparent inconsistencies or any light gaps created due to the window frame not being precisely 'square' and will hide deviations of up to 5mm on either side of the frame.

Illustration 1	Illustration 2

Illustration 1	Illustration 2

When measuring, ensure you have the proper clearance depth (see Minimum Depth Requirements table above) based on your measurement to the front of the nearest obstruction.

Measure the width and height of each window opening in three places: the top, middle and bottom and use the smallest measurement. You do not need to make any adjustments to your measurements. Our factory will make a minor deduction to each measurement provided to allow for easy installation.

Refer to the video at top of page for a step-by-step guide.

Please note: If your shutter height is greater than 1800mm a mid-rail will be required at the height of your choice.

Width

When determining the width, make sure you measure the outside edge of the architrave (as shown in the above diagram).

Drop

When measuring a window with no sill, please ensure that you measure the edge of the architrave using a steel measuring device. Measure from the top of the sill to the very top edge of the architrave (as shown in the diagram above).

Please note: When ordering a face fit shutter, ensure that you specify the 'finished sizes', including the frame.

Need a helping hand? Click the ‘Help’ button at the bottom of your screen or give us a call on 1300 699 041.

• Download Basswood Shutters Instructions
• Download Aluminium Shutters Instructions

Placing an Order

Delivery and Returns

Operating the blades

• Clearview: Use both hands to operate the blades/louvres (open andclose). The clearview strip is not to be used to operate the blades/louvres.
• Centre Tiltrod: Use the Tiltrod Bar to operate the blades/louvres (open and close)

Operating the panels

• For By-Pass/Sliding Shutters: Ensure all blades/louvres are closed before operating sliding panels to avoid blades from hitting each other (clash of blades on front & back panels)
• For Bi-Fold Shutters: Ensure all blades/louvres are closed before operating bi-fold panels to avoid blades from hitting each other when stacking the panels (clash of blades on joint panels).

Care for the Shutters

• Blades/Louvres should be opened and closed regularly.
• All panels on Bi-fold shutters should be stacked regularly.
• All panels on Sliding shutters should be slided regularly.
• Shutters should be cleaned regularly to prevent build up of dirts and dusts.
  • Use the vacuum with a soft brush attachment to lightly vacuum the blades/louvres. Microfibre or static cling duster can also be used as an alternative
  • Tilt down all the blades/louvres and vacuum/clean in a downward stroke.
  • Do not push too hard against the blades/louvres to avoid scratching the blades/louvres.
  • Do one side first before vacuuming/cleaning the other side.
  • Use a soft damp cloth to remove any stubborn dusts/dirts.
  • For Timber Shutters, use dry soft cloth or microfibre or static cling duster only
  • Vacuum or sweep away dirts/dusts that may have fallen to the floor or tracks
  • It is important not to use cleaning solutions or abrasive cleaners on shutters that may damage the shutter surfaces

External Aluminium Shutters should be hosed down regularly and washed with a very mild detergent to remove contaminants from airborne dirt and salt in coastal areas. Please ensure to rinse off thoroughly and remove any excess waters with a cloth.

Please use the following table as a guideline to clean your external Aluminium Shutters:

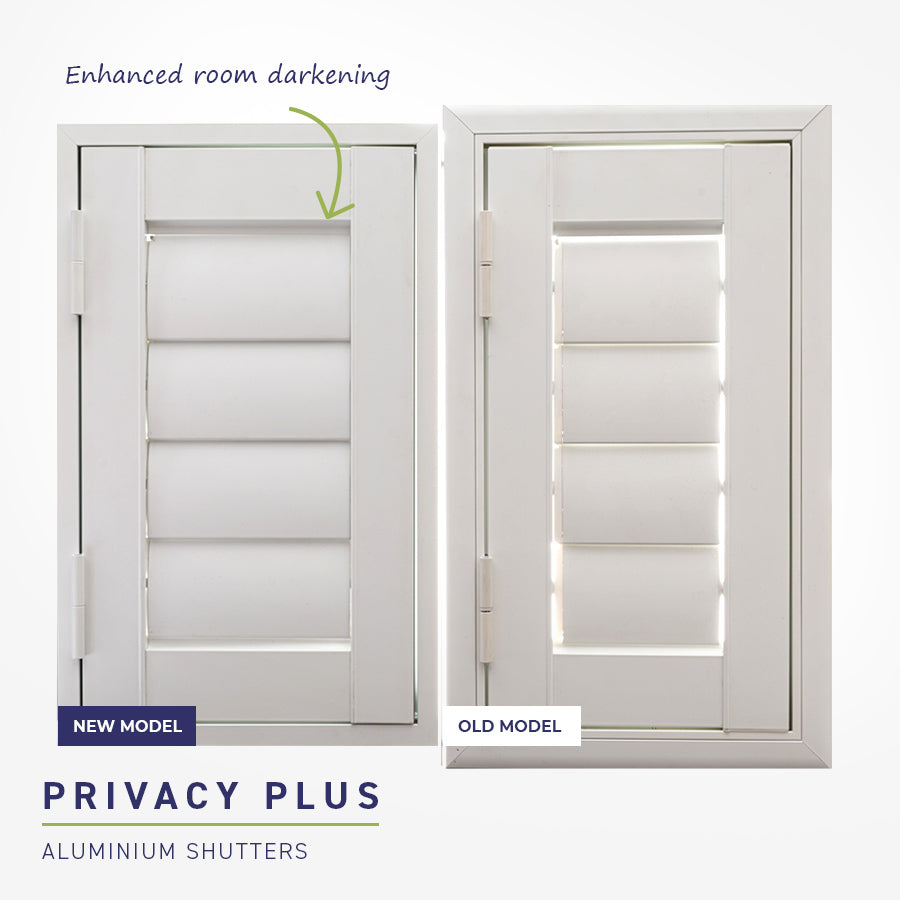

• New and enhanced room darkening
• Superior light control
• Each shutter also gives you the choice of two shutter-blade sizes: 63mm and 89mm
• All our shutters are high-tech powder coated, which is far more attractive and knock-resistant than traditional paint.

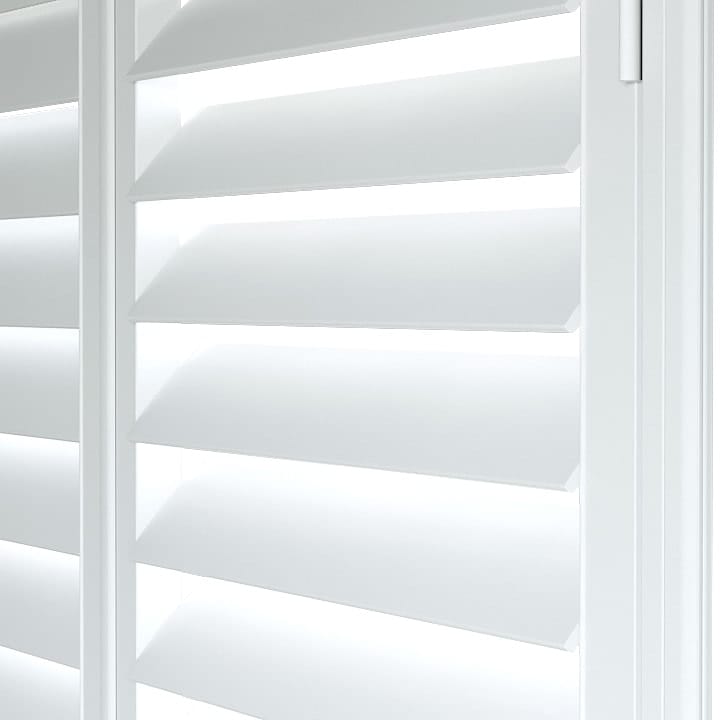

• The shutters have a 'soft-look' which is a function of the use of the smooth-edged aluminium and the smooth powder-coating.
• Privacy Plus aluminium shutters offer complete privacy, superior light control and enhanced room darkening properties.
